  • Waterproof flexible Mini Wallwasher LED strip light
  • Waterproof flexible Mini Wallwasher LED strip light
  • parameter_icon
  • parameter_icon
  • parameter_icon
  • parameter_icon



wallwasher


Product Details

Technical Spec

Download

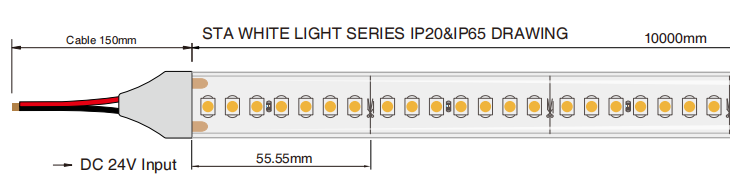

●Adopt 36° beam angle LED polarized lens. Effectively improve the illuminance value
●With constant current IC design, can support up to 10M without voltage drop
●Can do white light, CCT, DMX white light different versions
●Easy to install, you can use aluminum grooves or snaps
●Lifespan: 35000H, 3 years warranty

5000K-A 4000K-A

Color rendering is a measure of how accurate colors appear under the light source. Under a low CRI LED strip, colors might appear distorted, washed out, or indistinguishable. High CRI LED products offer light that allows objects to appear the way they would under an ideal light source such as a halogen lamp, or natural daylight. Also look for a light source’s R9 value, which provides further information about how red colors are rendered.

Need help deciding which color temperature to choose? See our tutorial here.

Adjust the sliders below for a visual demonstration of CRI vs CCT in action.

Warmer ← CCT → Cooler

Lower ← CRI → Higher

#ERP #UL #ARCHITECTUR #COMMERCIAl #HOME

Wall washing lights have a very broad range of applications in the lighting sector, including urban building lighting, park lighting, road and bridge lighting, etc. A hard body wall washing light is the standard and demands a lot of installation space, a lot of volume, complicated installation, high cost, and so on. Since the invention of flexible wall washing lamps, they are preferred over hardware wall washing lamps due to their flexible silica gel construction, good flexibility, flexible size, suitability for a smaller installation area, rich light effect, and ability to accommodate a more elaborate installation scene. In order to achieve high grade waterproof, acid and alkali resistance, corrosion resistance, and other great properties, flexible wall washing lamp uses high waterproof material.

The construction lighting business benefits greatly from flexible wall washing lamps since they not only demand less installation space but also cost less money and have more varied application possibilities. It is not only cheap to produce, lightweight, and plastic, but it may also cut back significantly on setup fees and procedures.Pro series utilize 12mm PCB, while regular series use 10mm PCB. Pro Seies offers an IP65 DIY connector, as well as a version with CCT and DMX light. Our bead angle, which differs from other wallwasher strips, is smaller—36 degrees. Compared to SMD LED strip, the light intensity is up to 2000CD and has more lumens at the same distance. It has higher output light under the same luminous flux, longer irradiation distance, and more focused illumination than traditional strip lighting with a 120 degree angle. The reasons we believe it to be superior to a large wall washer are because it is adaptable, easy to install, and does not require time-consuming or expensive installation procedures. Also useful for maintenance and updating.

It features a smaller light angle and greater lighting effect than a regular light strip. It can take the place of the standard SMD light strip and is utilized in many cabinets. Led wall-washing lamps are more energy-efficient than conventional wall-washing lamps, and they can be used over a large area for an extended period of time in cities to reduce their overall electricity consumption. Most projects gradually replace conventional wall-washing strips with flexible wall-washing strips. Additionally, LED wall wash lights are environmentally friendly, safeguard the environment, and do not discharge any dangerous compounds.

The light is made highly colorful by the LED wall washer strip's numerous colors, rich beam angle, complete color temperature, monochrome, and RGB magic light effect, all of which are controllable through a program. It is appropriate for the installation and use of various building kinds.

We can offer suggestions if you need to utilize it with other light strips. You might also require a high voltage strip or neon flex for outside decoration. You can customize the length, wattage, and lumen to meet your needs. You don't need to be concerned about the quality or delivery time because we have a more than 20,000 square meter workshop with all necessary production tools and testing equipment. The product series consists of the SMD, COB, CSP, Neon Flex, High Voltage, Dynamic Pixel, and Wall-washer strips. Please get in touch with our sales if you require a sample for testing or any other information.

SKU

Width

Voltage

Max W/m

Cut

Lm/M

Color

CRI

IP

Control

L70

MF328W126Q90-D027T1A12

12MM

DC24V

15W

55.55MM

1827

2700K

80

IP20/IP67

ON/OFF

35000H

MF328W126Q90-D030T1A12

12MM

DC24V

15W

55.55MM

1928

3000K

80

IP20/IP67

ON/OFF

35000H

MF328W126Q90-D040T1A12

12MM

DC24V

15W

55.55MM

2030

4000K

80

IP20/IP67

ON/OFF

35000H

MF328W126Q90-D050T1A12

12MM

DC24V

15W

55.55MM

2090

5000K

80

IP20/IP67

ON/OFF

35000H

MF328W126Q90-D065T1A12

12MM

DC24V

15W

55.55MM

2131

6500K

80

IP20/IP67

ON/OFF

35000H
