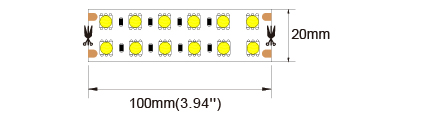

5050SMD-120LED-15


Product Details

Technical Spec

Download

●High energy efficiency, power consumption reduced by up to 50%, luminous efficacy over 180LM/W
●Mature product series, suitable for a wide range of application scenarios
●Operating / Storage Temperature: Ta: -30~55°C / 0°C~60°C
●Rated lifespan: 35000 hours, with 3 years product warranty

5000K-A 4000K-A

Color rendering is a measure of how accurate colors appear under the light source. Under a low CRI LED strip, colors might appear distorted, washed out, or indistinguishable. High CRI LED products offer light that allows objects to appear the way they would under an ideal light source such as a halogen lamp, or natural daylight. Also look for a light source’s R9 value, which provides further information about how red colors are rendered.

Need help deciding which color temperature to choose? See our tutorial here.

Adjust the sliders below for a visual demonstration of CRI vs CCT in action.

Warmer ← CCT → Cooler

Lower ← CRI → Higher

#ERP #UL #A CLASS

SMD LED consists of an LED chip and substrate, connected and sealed with encapsulation material to protect the internal component from external environmental impact.It comes with a 3-year service life and operates steadily within the temperature range of -30°C to 60°C.The SMD Series STA can be configured as spotlights or floodlights, with warm white, cool white and natural white color temperature options.
The SMD SERIES STA LED FLEX is an energy‑saving indoor lighting source for modern commercial and residential use.It can reduce power consumption by up to 50% compared with conventional lamps.Featuring a slim profile and flexible applicability, this lighting solution adopts reliable components, supporting long‑term operation and lowering subsequent maintenance expenses.The SMD Series suits a variety of indoor scenarios, including offices, schools, hotels, museums and hospitals.
The SMD SERIES STRIP LED is a high‑performance linear light source designed for indoor lighting.It provides good CRI performance, stable color consistency and steady lumen retention.These features make it a suitable alternative to fluorescent lamps and metal halide lamps.
It delivers cost advantages in daily operation and maintenance, cutting power usage by up to 50% and reducing CO₂ emissions by around 40%.The product adapts to most conventional lighting projects.
The SMD Series is a widely adopted LED strip product line in the lighting market.It features wide viewing angle and stable brightness output, making it suitable for occasions with strict requirements on light distribution and beam angle.Common applications include signage lighting, display lighting, indoor decorative lighting and cabinet lighting.

SKU

Width

Voltage

W/m

Cut

Lm/M

Color

CRI

IP

IP Material

Control

L70

MF350V120A80-D027A1A20

20MM

DC24V

24W

100MM

1920

2700K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF35OV120A80-D030A1A20

20MM

DC24V

24W

100MM

1992

3000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF350V120A80-D040A1A20

20MM

DC24V

24W

100MM

2040

4000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF350V120A80-DO50A1A20

20MM

DC24V

24W

100MM

2040

5000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF350V120A80-DO60A1A20

20MM

DC24V

24W

100MM

2040

6000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H
