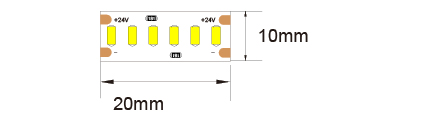

3014SMD-300LED-15


Product Details

Technical Spec

●HIGH EFFICENCY SAVING UP TO 50% POWER CONSUPTION REACHING >180LM/W

●POPULAR SERIES WITH THE RIGHT FIT FOR YOUR APPLICATION

●Working/Storage Temperature: Ta:-30~55°C / 0°C~60°C.

●Lifespan: 35000H, 3 years warranty

5000K-A 4000K-A

Color rendering is a measure of how accurate colors appear under the light source. Under a low CRI LED strip, colors might appear distorted, washed out, or indistinguishable. High CRI LED products offer light that allows objects to appear the way they would under an ideal light source such as a halogen lamp, or natural daylight. Also look for a light source’s R9 value, which provides further information about how red colors are rendered.

Need help deciding which color temperature to choose? See our tutorial here.

Adjust the sliders below for a visual demonstration of CRI vs CCT in action.

Warmer ← CCT → Cooler

Lower ← CRI → Higher

#ERP #UL #A CLASS

A new type of LED designed for commercial, industrial and residential lighting fixtures. The LED produce high output light with 30-50% less energy than the existing 5050 SMD type LEDs.It has the excellent thermal management. There are numerous options to choose from, power, lumen and optics. We offer both high efficiency and high lumen packages. They can be built into PCB or in other forms of lighting systems.Super-compact, High Efficiency SMD LED Flex Strip delivers an optimal light source for indoor lighting especially for living, commercial and exhibition spaces. SMD LED Tape offers excellent light uniformity and high reliability in an easy-to-install form factor.This tape is available in a range of sizes to provide flexible solutions.All products have passed stringent safety certifications (UL & CE) so they are safe to use in general illumination applications.

SMD LED Lighting is the ideal series lights in your commercial space. SMD LED SERIES offers a range of lighting solutions with ultra-high light output, high beam angle, wide range of color temperatures and superior uniformity to help you illuminate your spaces the right way. The SMD Series provides high lumen density, uniformity and ensures a controlled light output with exceptional CRI (Ra≥80). Extensively tested to meet UL/cUL and CE specifications, this series will exceed expectations by combining our unique funnel design with high-grade components.It has high efficacy, saving up to 50% power consumption and reaching more than 180LM/W. It is with excellent thermal management design, working/ storages temperature could be -30℃~55°C(-22°F~112°F).With a popular size, they are ideal for various applications including downlights and general lighting. The SMD series product is RoHS compliant and is guaranteed to be free of any lead, mercury, cadmium and hexavalent chromium (Cr6+).

SKU

Width

Voltage

Max W/m

Cut

Lm/M

Color

CRI

IP

IP Material

Control

L70

MF331V30OA80-D027KOA10

10MM

DC24V

24W

20MM

1920

2700K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF331V300A80-DO30KOA10

10MM

DC24V

24W

20MM

2040

3000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF331W300A80-D040KOA10

10MM

DC24V

24W

20MM

2160

4000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF331W300A80-DO50KOA10

10MM

DC24V

24W

20MM

2160

5000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF331V300A80-DO60KOA10

10MM

DC24V

24W

20MM

2160

6000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H
