2835SMD-168LED-15


Product Details

Technical Spec

Download

●ULTRA LONG: HANDY INSTALLATION WITHOUT HAVING TO WORRY ABOUT VOLTAGE DROP AND LIGHT INCONSISTENCY.
●ULTRA HIGH EFFICENCY SAVING UP TO 50% POWER CONSUPTION REACHING >200LM/W
●Conform to “2022 ERP Class B for EU Market”, and conformed to “TITLE 24 JA8-2016 for US Market”

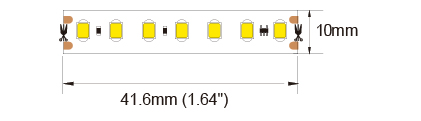

●PRO-MINI CUT UNIT <1CM FOR PRECISE AND FINE INSTALLATIONS.
●High color reproduction capability for best class display.
●Working/Storage Temperature: Ta:-30~55°C / 0°C~60°C.
●Lifespan: 50000H, 5 years warranty

5000K-A 4000K-A

Color rendering is a measure of how accurate colors appear under the light source. Under a low CRI LED strip, colors might appear distorted, washed out, or indistinguishable. High CRI LED products offer light that allows objects to appear the way they would under an ideal light source such as a halogen lamp, or natural daylight. Also look for a light source’s R9 value, which provides further information about how red colors are rendered.

Need help deciding which color temperature to choose? See our tutorial here.

Adjust the sliders below for a visual demonstration of CRI vs CCT in action.

Warmer ← CCT → Cooler

Lower ← CRI → Higher

#ERP #UL #ULTRA LONG #A CLASS #COMMERCIAL #HOTEL

It not only provides you an excellent cost-performance ratio, but also enhances light output brightness, consistency and homogeneity. SMD SERIES PRO is fully compatible with different mounting styles including wall/ceiling mounts, back box/pendant fixtures, suspension luminaires, and track heads.The series has been verified to conform to the new EU regulation for A+ class LED bulbs, requiring brightness over 200 lumens per watt and color rendering index (CRI) of over 80.SMD LED Flex has the features of Ultra Long, 50,000 hours lifespan and high color reproduction capability. The lifetime of SMD LED Flex is 5 times morth than other LED Flex on the market with 20,000 hours life span. Whether it is indoor or outdoor application, SMD LED Flex can be widely used in many applications for its superior light distribution for retail and office, signage, ceiling accent lighting , wall washer, phototherapy light, cabinet and furniture highlighting etc. The SMD SERIES PRO LED STRIP adopts the most advanced 0.1W high power, ultra-long life, high brightness SMD LED as light source, and built in constant current IC driver to keep constant current output. This product not only has low power consumption comparing to traditional light sources, but also has stable color temperature with high color rendering index up to Ra90.

SMD series SMD pro led strip is suitable for many applications including office, residential and commercial lights. The high efficiency SMD LEDs with excellent color rendering, makes it a good choice for all kinds of indoor lighting application as well as retail lighting and display case backlighting.       With a cut unit of only 1cm, the SMD series can be installed in a variety of places, such as behind television displays, under cabinets and shelves or underneath louvers, etc. The SMD series fulfills all kinds of demands for any types of lighting designs and creates a smart looking professional environment.

SKU

Width

Voltage

Max W/m

Cut

Lm/M

E.Class

Color

CRI

IP

IP Material

Control

L70

MF328V168A80-D027A1A10

10MM

DC24V

14W

41.6MM

1715

F

2700K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

50000H

MF328V168A80-D030A1A10

10MM

DC24V

14W

41.6MM

1800

F

3000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

50000H

MF328V168A80-D040A1A10

10MM

DC24V

14W

41.6MM

1906

F

4000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

50000H

MF328V168A80-D050A1A10

10MM

DC24V

14W

41.6MM

1910

F

5000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

50000H

MF328V168A80-DO60A1A10

10MM

DC24V

14W

41.6MM

1915

F

6000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

50000H

Energy efficiency grade
