What’s the difference between COB LED strip and SMD LED strip light?

When many users are choosing LED light strips, they often encounter the dilemma of “whether to choose COB or SMD”: they are not clear about the core differences between the two, do not know which one is more suitable for their scenarios, and are worried about choosing products that do not meet their needs and causing waste.

1. COB LED light strip: What is COB technology
COB is the full term for Chip On Board (chip directly attached to the board). The COB LED light strip is formed by directly encapsulating multiple LED chips on a substrate to create a continuous light-emitting surface, and then covering it with a layer of protective and diffusing materials. Its core feature is high chip density and no obvious gap between the LED chips, achieving a “Smoothly” light emission effect， which eliminates the “graininess” of traditional light strips at its root. Our COB light strip uses high-quality integrated chips and high-transparency silicone encapsulation. It not only has continuous light emission but also has excellent heat dissipation performance， which can effectively reduce light attenuation and extend service life. At the same time， it supports arbitrary length cutting and is suitable for complex shape installation requirements.

2.SMD LED light strip: What is SMD technology
SMD stands for Surface Mount Device (surface-mounted device). SMD LED light strips are made by fixing individual LED bulbs through the mounting process onto a flexible PCB board. Common specifications include SMD 2835, SMD 5050, SMD 3528, etc. Different specifications of LED bulbs have differences in size, brightness, and power. As a mainstream product category, SMD light strips have mature technology and diverse specifications, which can flexibly match different brightness and voltage requirements. Our SMD light strips all use high color rendering index bulbs (Ra ≥ 90), with high color reproduction accuracy. They can be customized with 12V/24V voltage and IP44-IP67 waterproof grades, covering various scenarios such as home, commercial, and engineering. The cost-performance advantage is outstanding.

The core difference：

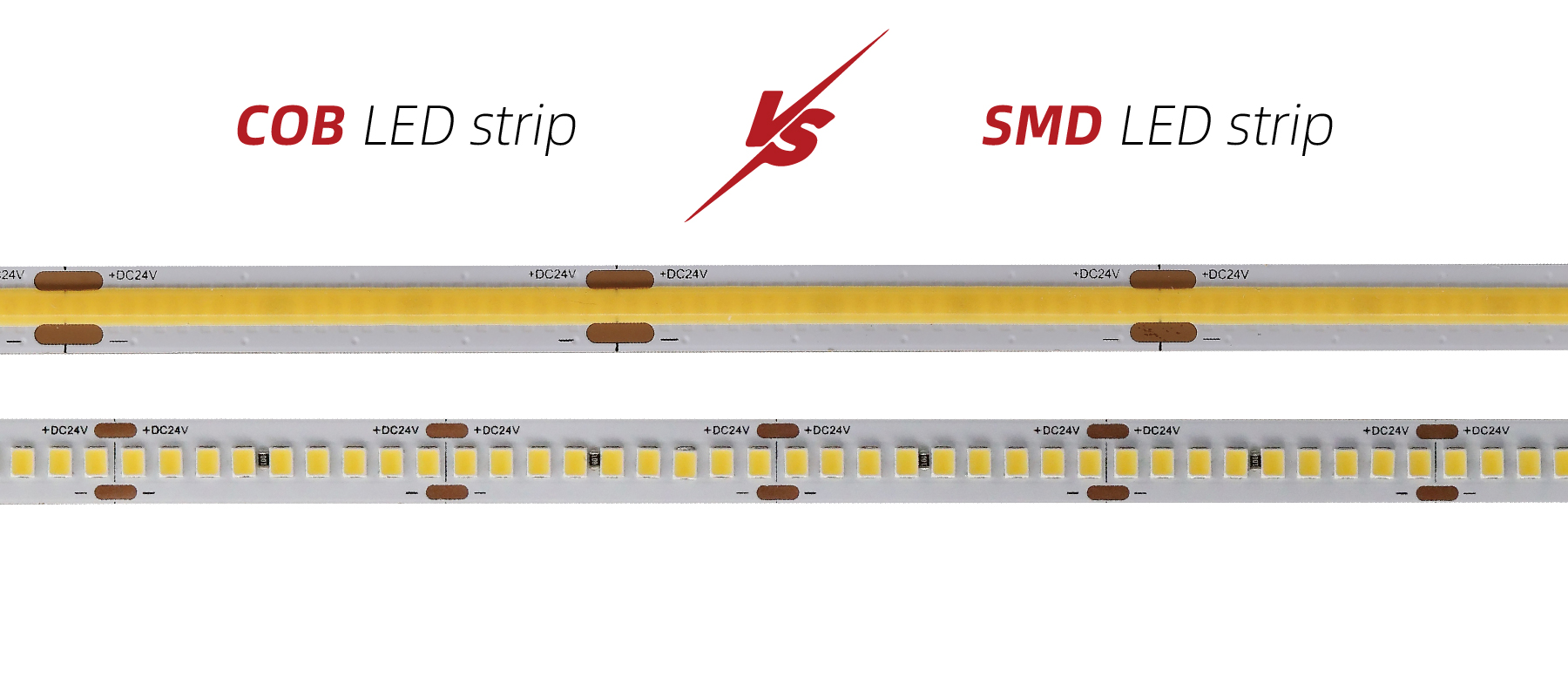

It is easy to see from the definition that the core difference between COB and SMD LED light strips lies in the “lighting form”: COB is a “surface light source”, achieving continuous light emission through densely arranged chips; SMD is a “point light source”, achieving light emission through the arrangement of individual light bulbs. This fundamental difference directly determines the differences in optical performance, installation scenarios, and user experience between the two.

II. Core Differences Dissection: Detailed Comparison of COB LED vs SMD LED
2.1 Technical Principles and Structural Differences

2.1.1 COB LED Light Strip: Chip-integrated packaging, seamless illumination
The COB technology does not require independent packaging of individual chips. Instead, it directly attaches dozens or even hundreds of tiny LED chips onto the PCB substrate, and then encapsulates them as a whole with silicone.This structure ensures that the spacing between chips is extremely small, creating a continuous light-emitting surface. The light, after diffusing through the silicone, becomes more gentle, with no obvious light spots or shadows. At the same time, the chips are directly mounted on the substrate, allowing the heat to be directly conducted to the substrate, resulting in a shorter heat dissipation path and better heat dissipation efficiency.

2.1.2 SMD LED Light Strip: Individual light beads are mounted, emitting a patterned light effect
The SMD technology involves first encapsulating individual LED chips into separate light beads, and then using the mounting equipment to evenly arrange and solder the light beads onto the PCB board. There is a certain distance between the light beads, and when they emit light, they present a “dot matrix” effect. When observed closely, the individual light beads’ light points can be clearly seen. Its structure is relatively simple, and the production process is mature. The density and specifications of the light beads can be flexibly adjusted according to the requirements.

2.13 Summary Table of Core Differences

COB LED and SMD LED light strips are not “which is better”, but “which is more suitable”. SMD LED light strips, with their mature technology, high cost-effectiveness and flexible installation methods, are suitable for most ordinary scenarios and are a cost-effective choice; COB LED light strips, with their excellent optical performance, uniform light and efficient heat dissipation, are suitable for mid-to-high-end scenarios that seek high-quality lighting effects and have sufficient budget.

As a professional manufacturer of LED light strips, we have been deeply involved in the industry for many years and possess complete COB and SMD LED light strip production lines. We can provide customized LED light strip solutions for different scenarios such as home, commercial, and engineering. All our products have passed regular inspections and are of reliable quality with comprehensive after-sales services. If you need to purchase LED light strips or have any questions regarding selection, please feel free to contact us. We will be more than happy to serve you and provide you with highly compatible and cost-effective LED lighting products.
