SDCM Color Tolerance: The Definitive LED Linear Lighting Specification Guide for Commercial & Residential B2B Projects

For B2B lighting stakeholders including interior lighting specifiers, MEP engineers, commercial construction contractors, villa developers, and municipal lighting procurement managers, SDCM color tolerance is a core parameter featured on all COB linear strips, dual CCT ambient light bars, and outdoor waterproof neon fixtures. A pervasive industry misassumption persists: a smaller SDCM value universally delivers superior lighting performance. Many professional purchasers blindly specify SDCM ≤2 products for all project types, driving up overall procurement expenses, yet still encounter costly on-site defects such as wall color streaks, green-tinted illumination, and mismatched replacement light strips.
With 21 years of vertical manufacturing experience in LED linear lighting and a 24,000 m² automated spectral chip sorting facility, our engineering team has delivered turnkey lighting solutions for museum exhibitions, medical aesthetic clinics, luxury residential no-main-light schemes, office fit-outs, and large-scale building facade lighting projects. This comprehensive guide demystifies SDCM functionality, clarifies its limitations alongside other optical metrics, delivers actionable scene-based selection standards, and addresses frequently encountered on-site color inconsistency challenges to help B2B clients optimize product specification and control project budgets without compromising visual quality.

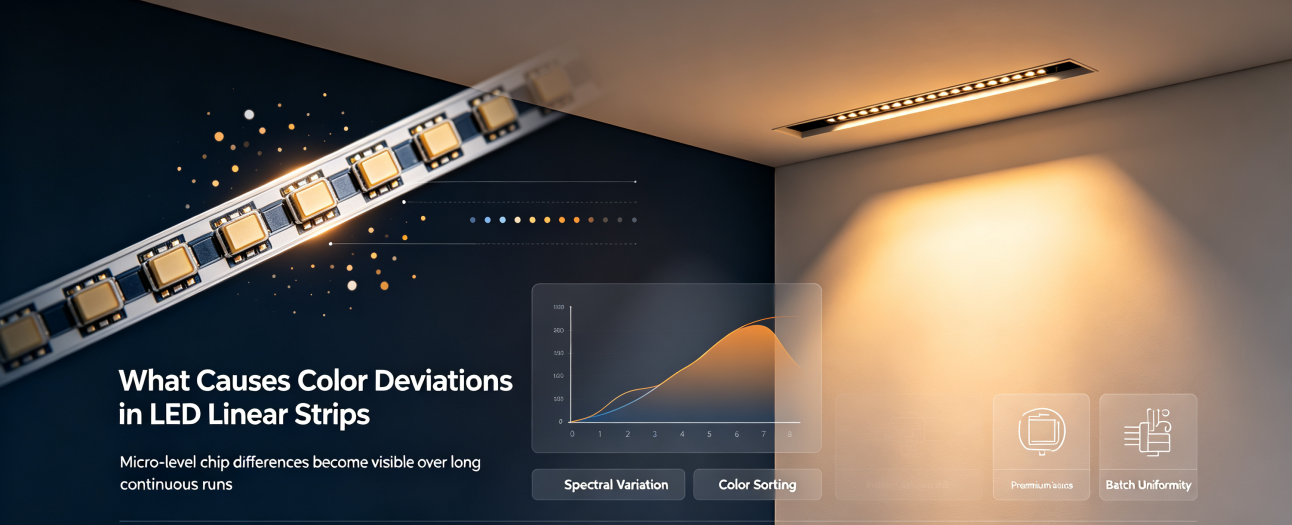

1. Core Background: What Causes Color Deviations in LED Linear Strips

All LED linear lighting relies on semiconductor chips to generate luminous output. Even chips produced with identical raw materials on the same production line carry micro-level differences in spectral distribution and color temperature. These tiny chromatic shifts remain invisible when inspecting individual chips, yet become highly noticeable once hundreds of chips are continuously arranged in long aluminum channel wall washers, recessed ceiling strips, or building outline lighting. Extended linear light layouts magnify minor chip-level color variance, resulting in patchy warm yellow, dull white, or green-hued wall surfaces that break unified spatial aesthetics. Manufacturers resolve this issue by sorting LED chips into standardized color batches, measured via the SDCM metric. Key Definition of SDCM Color Tolerance SDCM (Standard Deviation of Color Matching) quantifies the allowable chromatic deviation range for LED chips within a single production batch:
Lower SDCM value: Tighter color uniformity across finished light strips, stricter chip sorting standards, higher manufacturing cost
Higher SDCM value: Wider acceptable color variance between chips, relaxed sorting workflows, more cost-effective mass production
Critical B2B Spec Note: SDCM only measures batch-to-chip color consistency. It does not reflect core light quality indicators including CRI, R9 red rendering index, anti-glare performance, spectral balance, or luminous efficiency. Uniform color output does not equate to premium light quality.

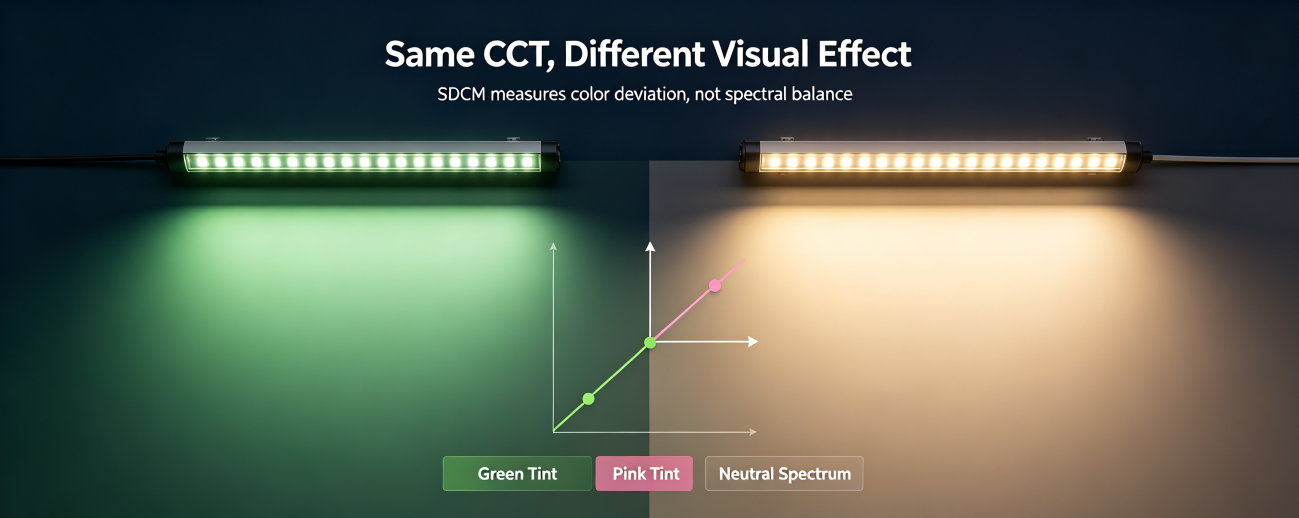

2. Why Identical CCT LED Strips Show Drastically Different Visual Effects

Lighting specifiers frequently face a confusing real-world scenario: two linear strips labeled with the exact same 3000K warm white CCT deliver opposing wall lighting results. One fixture emits soft, balanced warm ambient light, while the other produces harsh, grey illumination with a prominent green tint.
Color temperature only defines the warm-cold spectrum boundary of white light. White LED output also shifts along a green-pink chromatic axis, a detail SDCM cannot track. SDCM solely calculates each chip’s distance from the standardized CCT reference point, with no ability to identify directional spectral bias (green or pink tint). This creates a common specification paradox:
A 2SDCM strip may feature unbalanced spectra with heavy green shift, creating rigid, uncomfortable lighting
A 3SDCM strip with neutral, calibrated spectral output delivers smoother, more natural visual comfort
Relying solely on SDCM numerical values to evaluate lighting performance will lead to inaccurate product selection for B2B projects.

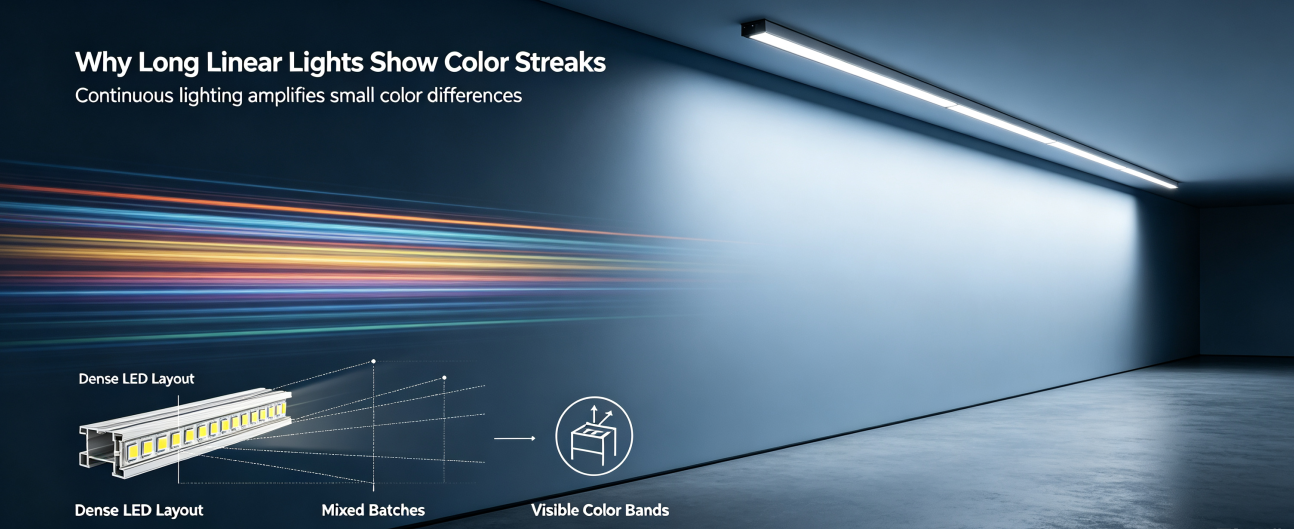

3. Why Long Linear Wall Washers &Ceiling Strips Develop Visible Color Streaks

Point-source lighting products (downlights, panel lights) mask minor chip color differences due to discrete, segmented light emission. In contrast, densely packed continuous linear fixtures stretch tiny chromatic inconsistencies across large surface areas, forming obvious colored streaks and uneven light bands that ruin cohesive lighting design.
Our decades of on-site project data confirms over 90% of linear lighting color streak failures stem from manufacturers mixing chips from separate color-sorted batches — not excessively high SDCM ratings. For long-run concealed ceiling lighting and large commercial facade lighting, enforcing unified color sorting for the full order is a more impactful quality control measure than downgrading SDCM from 3 to 2.

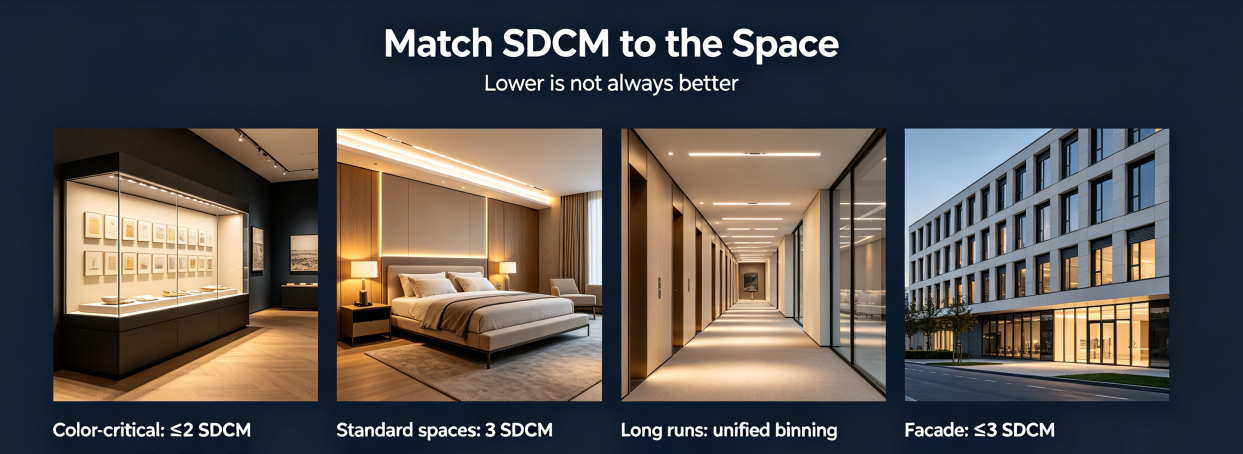

4. Cost &Performance Breakdown: SDCM Grade Application Table

This comparative table provides B2B procurement teams and specifiers with standardized SDCM selection benchmarks based on project visual sensitivity, cost budget, and application scenarios, fully compliant with international lighting specification norms.

B2B Procurement Tip
Specifying SDCM ≤2 for non-critical projects will increase raw material and sorting costs by 30%–60% without delivering visible visual improvements, creating unnecessary budget waste for contractors and developers.

5. Long-Term Risk: Color Mismatch Between Original &Replacement Light Strips

Nearly all commercial LED strip datasheets only mark initial factory SDCM values, ignoring long-term color drift risks. Outdoor architectural lighting and RGB dynamic pixel strips operate continuously for thousands of hours, triggering gradual spectral shifting in LED chips. When partial renovation or fixture replacement is required, suppliers without reserved matched color batch inventory will deliver new strips with obvious color breaks against aging original fixtures.
Practical B2B Solution
Instead of mandating ultra-low initial SDCM ratings, procurement contracts must include clauses requiring manufacturers to reserve matching color-sorted chip inventory for future replenishment orders. All lighting for a single project should be sourced from one unified production batch to eliminate post-installation color mismatch.

6. Frequently Asked Questions

Q1: Do all linear strips in a luxury villa no-main-light system need SDCM ≤ 2?
A: Only color-sensitive zones including walk-in closets, artwork display walls, and wine cellars require 2SDCM strips. Bedrooms, circulation hallways, and balcony ambient lighting can adopt high-CRI 3SDCM linear lights. No visible color disparity will appear to residents, and this adjustment significantly cuts overall project procurement costs for B2B villa contractors.
Q2: Segmented color streaks appear on aluminum channel wall washers — is insufficiently low SDCM the root cause?
A: Mixed chip batches from different color sorting tiers are the primary culprit, not SDCM rating limits. For long continuous linear lighting projects, formal procurement terms requiring full-order unified chip sorting resolve streaking defects far more effectively than lowering SDCM specifications.
Q3: Between a 2SDCM and 3SDCM 3000K ambient strip, why can the 3SDCM variant deliver softer illumination?
A: SDCM only restricts CCT deviation ranges and cannot identify green or pink spectral skews. A 2SDCM strip with severe green tint produces harsh lighting, while a 3SDCM fixture with balanced neutral spectra delivers gentle, natural ambient light. Always cross-check spectral balance alongside SDCM values during product sampling.
Q4: Is 2SDCM mandatory for large municipal building facade lighting projects?
A: No. Viewed from ground-level distant vantage points, minor chromatic inconsistencies are undetectable to observers. Standard waterproof linear strips graded SDCM ≤3 fully meet performance requirements. Only retail shop window lighting designed for close pedestrian viewing justifies upgrading to 2SDCM high-uniformity fixtures.
Q5: How can B2B buyers avoid color mismatch when replacing aged linear strips during renovation?
A: Add two core requirements to supplier purchase agreements:
Manufacturers reserve inventory matching the exact color sorting batch of the original project lighting;
Partner with manufacturers with standardized long-term color sorting management systems to eliminate color discontinuity caused by multi-year chip spectral drift.

7. Manufacturer Quality Control Advantage for B2B Clients

Our facility operates a 24,000 m² production base equipped with fully automatic spectral chip sorting equipment, supported by 21 years of specialized linear LED lighting R&D and manufacturing capacity. We supply tiered SDCM linear lighting solutions tailored to diverse B2B project demands:
Precision COB strips with SDCM ≤2 for color-critical gallery, museum, and high-end commercial display projects;
Cost-effective SDCM 3 engineering-grade strips for residential renovation, office fit-out, and municipal outdoor lighting projects.
All dual CCT, RGB color-changing, and IP-rated waterproof neon strips are manufactured in independent color-sorted batches to eliminate streaking defects caused by mixed chips. We maintain permanent stock for every standardized color temperature classification, guaranteeing zero color mismatch for future replacement and replenishment orders for global B2B contractors, lighting designers, and procurement firms.

The widespread industry habit of uniformly specifying SDCM ≤2 linear strips for all lighting projects creates unnecessary cost overhead while failing to resolve core color inconsistency issues including mixed chip batches, spectral green bias, and long-term color drift. SDCM functions solely as a batch uniformity risk control metric, and comprehensive light quality evaluation must integrate CRI, R9, spectral balance, unified batch sorting, and scene visual sensitivity.
By adopting scenario-based SDCM selection standards outlined in this guide, B2B lighting specifiers and procurement managers can optimize project budgets, eliminate post-installation color defects, and deliver consistent, high-quality lighting results for every commercial and residential project.
