Constant current LED light strips and constant voltage LED light strips: How to save 40% on installation labor costs

In commercial lighting, engineering decoration, and home furnishing, LED light strips have become the mainstream lighting choice due to their advantages such as flexibility, easy cutting, soft light, and strong adaptability. However, in actual project implementation, high installation labor costs, long construction cycles, and cumbersome post-construction maintenance remain common pain points in the industry.

According to industry construction data, labor costs account for approximately 35%-50% of the total installation cost in medium to large-sized LED strip light projects. The core costs are concentrated in four main areas: wiring operations, power supply quantity, cutting and soldering, and debugging/repair. The choice of driving method (constant current/constant voltage) directly determines the workload in these areas, thus impacting overall labor costs. This article will analyze how constant current LED strip lights can simplify the installation process and help projects save 40% on installation labor costs, providing practical reference for cost reduction and efficiency improvement in projects,
from four dimensions: principles, installation differences, data comparison, and scenario adaptation.

I. Basic Understanding: Core Definitions and Principles of Constant Current and Constant Voltage LED Strips
(1) Constant voltage LED light strip (CV)
●Definition: LED light strip with a fixed output voltage (commonly DC12V/24V) and current that dynamically changes with the load of the light strip. It needs to be used with a constant voltage power supply with the corresponding voltage.
●Principle: The LED strip is connected in series with a current-limiting resistor to maintain a stable voltage. The current is automatically adjusted according to the length of the LED strip and the number of LED beads. Every 3 (12V) or 6 (24V) LEDs form a voltage group to ensure basic illumination.
●Key features: constant voltage and fluctuating current; easy to install over short distances (≤5 meters); voltage drop and uneven brightness may occur over long distances.

(2) Constant current LED light strip (CC)
●Definition: LED light strip with fixed output current (commonly 350mA/500mA) and voltage adaptively adjusted according to the load. It needs to be used with a constant current driver that matches the current.
●Principle: Built-in constant current IC monitors and stabilizes the current in real time, and automatically compensates for voltage fluctuations; regardless of the length of the light strip or temperature changes, the current flowing through each LED bead is consistent, avoiding overcurrent or undercurrent.
●Key features: constant current, adaptive voltage, uniform brightness over long distances (10-30 meters), strong resistance to voltage fluctuations, and higher stability.

II. In-depth comparison: Installation differences between constant current and constant voltage LED light strips
(1) Cabling process: Constant current significantly reduces the number of cabling operations and the amount of cable used.
●Constant voltage LED strip: The longest single section is only 5 meters. If it exceeds 5 meters, it needs to be wired in sections and connected to multiple power points. A 10-meter LED strip needs 2 power connections, and a 20-meter strip needs 4 power connections. This results in more wiring operations, greater material consumption, and more time spent on manual wiring.
●Constant current LED strip: A single section can operate stably for 10-30 meters, and a single point of power connection can cover a long distance; a 20-meter LED strip only requires one power connection, reducing the number of wiring operations by 60%-80%, reducing the amount of wire used, and significantly improving the efficiency of manual wiring.

(2) Power supply adaptation: Constant current reduces the number of power supplies and simplifies installation and debugging.
●Constant voltage LED strip: One power supply is required every 5 meters, and multiple power supplies need to be connected in parallel for long-distance projects; the number of power supplies is large, and each one needs to be fixed, wired, and debugged, which is cumbersome to operate manually and prone to power matching errors.
●Constant current LED strip: Only one driver is needed for long distances, reducing the number of power supplies by more than 70%; there is no need to frequently match power parameters, simplifying the fixing and wiring steps and greatly reducing the workload of debugging.

(3) Cutting and welding process: constant current reduces the accuracy requirements and reduces rework.
●Constant voltage LED strips: They must be cut into 5-meter segments. Cutting errors exceeding 10cm can easily lead to uneven brightness. The segments need to be reinforced by welding. There are many welding points, which is time-consuming and labor-intensive. Welding errors can easily cause malfunctions and result in a high rework rate.
●Constant current LED strips: Flexible cutting, no need for strict segmentation, just cut to the actual length; very few welding points, or even no welding required, reducing the difficulty of manual operation and reducing the rework rate by more than 80%.

(4) Debugging and maintenance: Constant current reduces troubleshooting and lowers the manual labor required later.
●Constant voltage LED strips: Long-distance LED strips are prone to problems such as dimming at the end, flickering, and dead lights. The fault points are scattered, and troubleshooting requires segment-by-segment testing, which is time-consuming and manual. Later maintenance requires frequent power supply replacement and wiring repair, resulting in high maintenance costs.
●Constant current LED strip: stable current, no significant voltage drop, uniform brightness throughout, and low failure rate; troubleshooting only requires testing a single driver, making maintenance simple and reducing manual maintenance costs by more than 60%.

III. Scenario Adaptation: How to select constant current/constant voltage LED strips for different projects to maximize cost reduction.
(1) Prioritize constant current LED light strips (suitable for scenarios requiring long distance, high stability, and cost reduction)

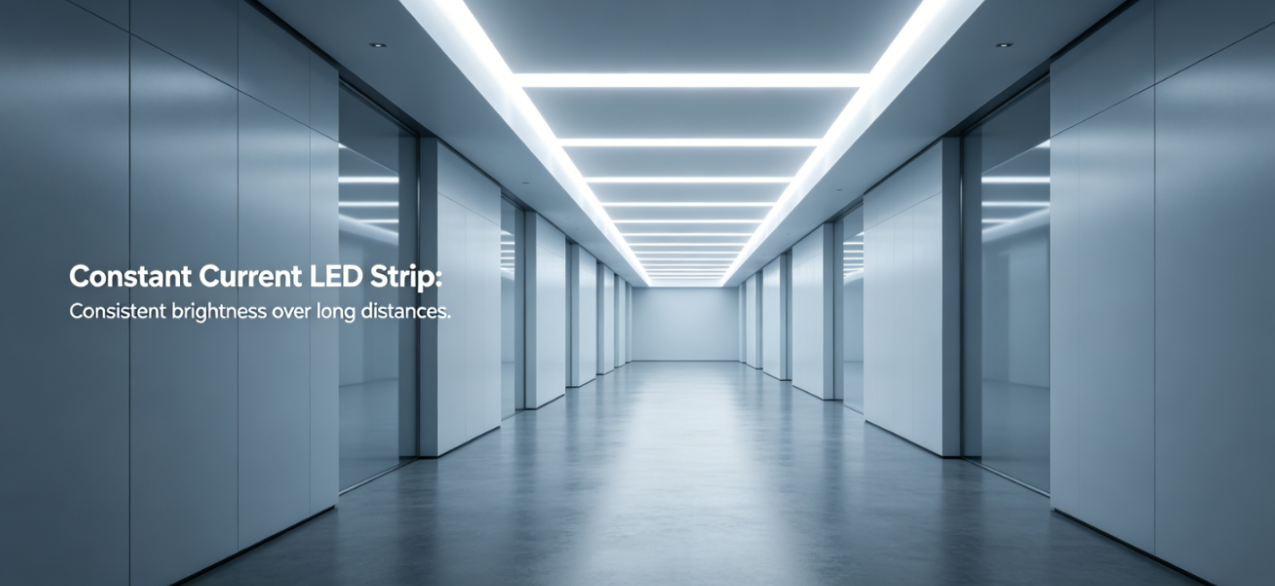

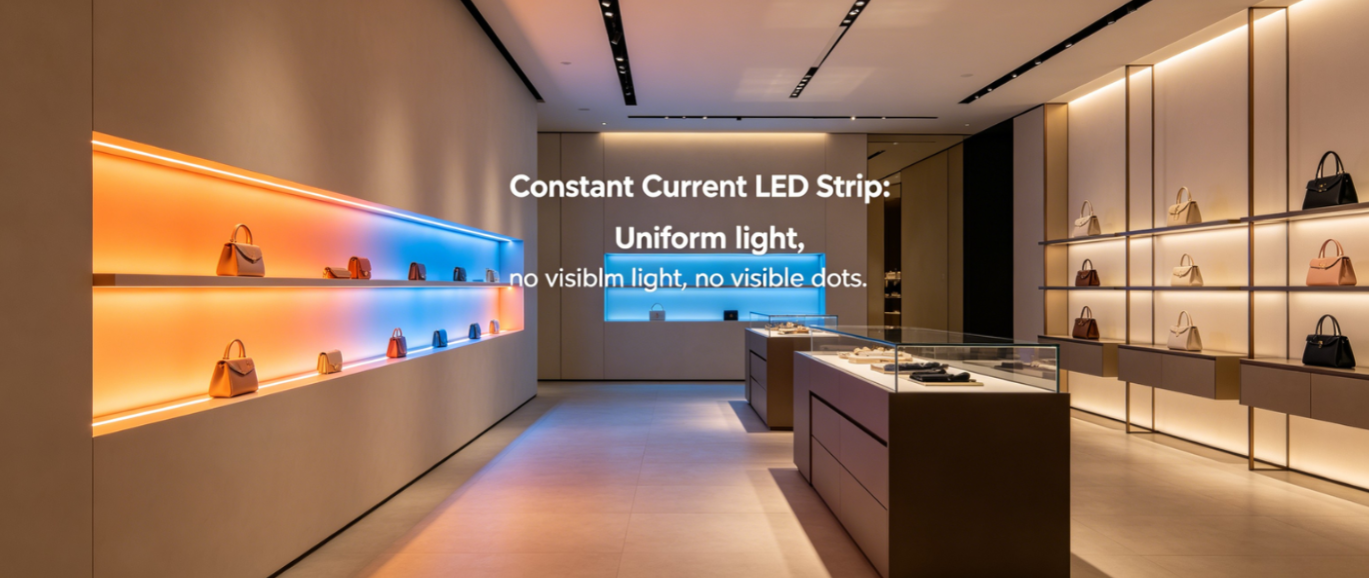

●Commercial lighting: shopping mall corridors, shop entrances, and large supermarket ceilings (length ≥ 10 meters, requiring uniform brightness).
●Interior decoration: hotel guest room waistline, office building outline, long-distance light strip in exhibition hall (simplified installation and reduced maintenance required).
●Outdoor lighting: building facades, landscaped waterways, and park roads (long distances, resistant to voltage fluctuations, and requiring less manpower).

(2) Optional constant voltage LED light strip (suitable for short distance, low cost, and easy installation scenarios)

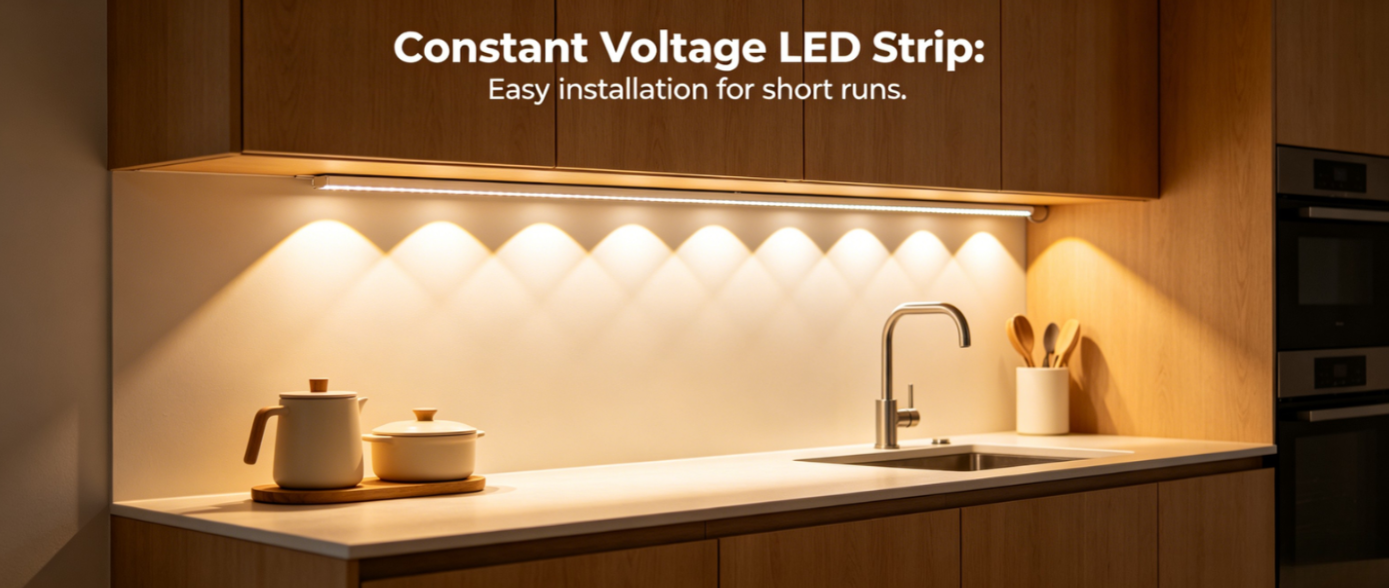

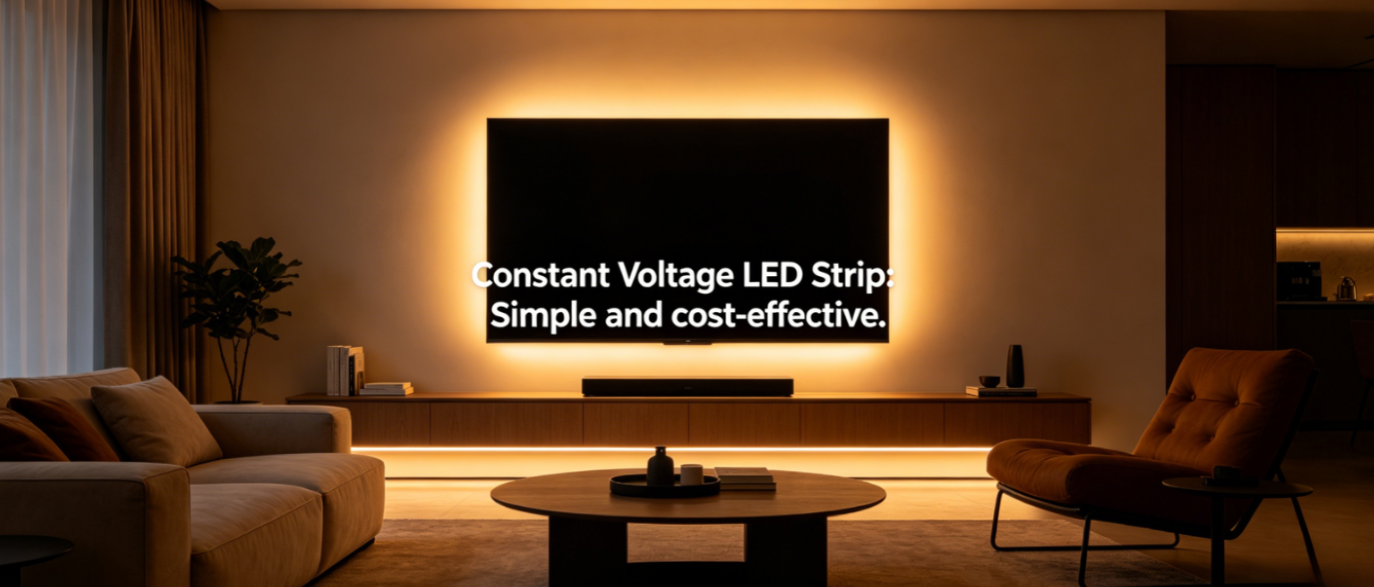

●Home lighting: under cabinets, inside wardrobes, TV background wall (length ≤ 5 meters, no uneven brightness issues over short distances)
●Small decorations: window displays, small ornaments, DIY decorations (easy to install, power supply readily available, cost controllable).

The core optimization logic for reducing labor costs in LED strip light installation lies in simplifying the installation process, reducing repetitive operations, and lowering the rework rate. While constant voltage LED strip lights are convenient for short-distance installation, long-distance projects suffer from cumbersome wiring, multiple power supplies, and frequent malfunctions, resulting in high labor costs. Constant current LED strip lights, on the other hand, offer advantages such as single-point power connection over long distances, fewer power supplies, flexible cutting, and fewer malfunctions. These advantages effectively simplify installation steps, reduce labor hours, and save approximately 40% in installation labor costs, while ensuring uniform brightness and long-term stability, making them suitable for most medium to large-scale commercial, engineering, and outdoor projects.

When selecting a LED strip light for a project, it’s unnecessary to blindly pursue a single driving method. A comprehensive assessment should be made based on the installation length, the environment, and the budget: for simple short-distance (≤5 meters) scenarios, constant voltage LED strip lights are suitable; for long-distance (≥10 meters), high-stability, and cost-reduction requirements, constant current LED strip lights should be prioritized, balancing short-term installation efficiency with long-term operating costs.
