COB vs CSP vs SMD LED Strip Lights: Complete Technical Buying Guide for B2B Lighting Professionals (2026)

LED strip lighting has become a core specification for global commercial construction, hospitality fit-outs, retail fitments and facade lighting projects. Over the last decade, three dominant LED chip architectures—SMD, COB and CSP—have replaced basic single-chip tape lights, each delivering distinct performance, aesthetic and total cost of ownership (TCO) outcomes for B2B stakeholders including lighting designers, electrical contractors, wholesale distributors and project procurement teams.
This data-backed B2B guide is compiled from 20+ years of in-house engineering experience at Shenzhen Mingxue Lighting, a certified ISO 9001 LED strip manufacturer operating a 24,000 sqm production base across Shenzhen R&D and Foshan manufacturing facilities, supplying commercial lighting clients across 40+ countries. We break down core technology mechanics, side-by-side technical benchmarks, application matching, full lifecycle cost analysis, quality sourcing criteria and a dedicated FAQ section optimized for Google featured snippet capture.
All data referenced aligns with LM-80 lumen maintenance testing, UL/CE/RoHS global compliance standards and industry-standard photometric testing protocols, with zero unsubstantiated marketing claims to meet international advertising compliance requirements.

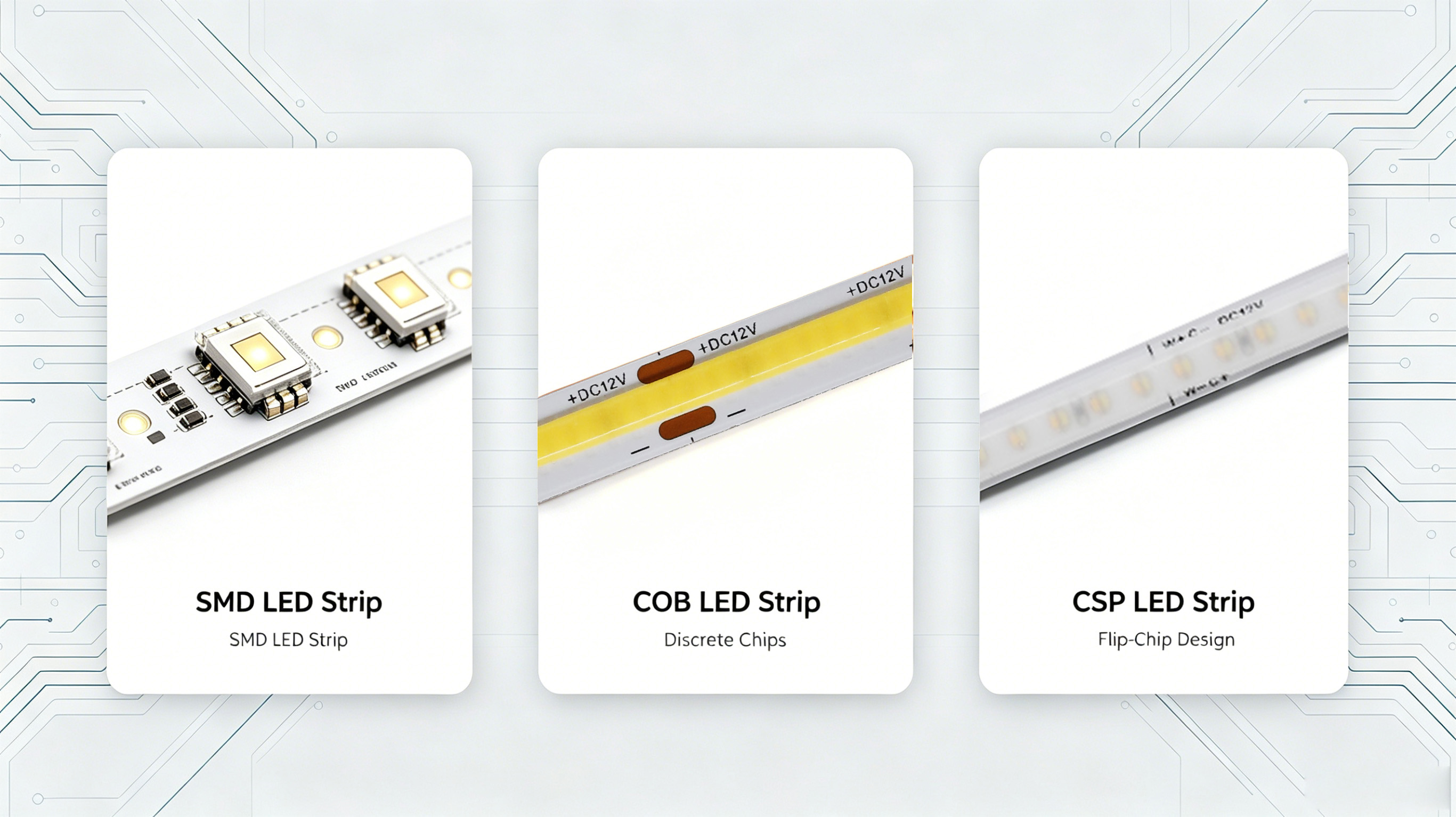

1. Core Technology Breakdown of SMD, COB &CSP LED Strips

1.1 SMD LED Strip Lights (Surface-Mounted Device)

SMD is the foundational mass-produced LED strip technology for entry-to-mid-tier B2B lighting projects. The manufacturing process mounts pre-packaged discrete LED semiconductors onto flexible PCB substrates via automated pick-and-place assembly, with individual phosphor dome encapsulation per chip. Common form factors include 2835, 5050, 3528 and 2216, with numerical values referencing chip dimensions in 0.1mm increments.
Core Functional Traits for B2B Specifiers
●Visible dot light hotspots when installed without deep aluminum extrusion profiles and thick frosted diffusers
●Fixed 120° beam angle limited by single-chip dome lenses
●Standard density range: 30–120 LEDs per linear meter
●Power rating spectrum: 4.8W/m up to 28.8W/m
●Lowest upfront per-meter material cost, ideal for non-visible functional lighting installations

1.2 COB LED Strip Lights (Chip-on-Board)

COB represents a transformative architectural lighting upgrade for premium B2B projects. Instead of pre-packaged LED components, bare semiconductor dies are die-attached directly to copper PCB traces, then covered with a single continuous phosphor-silicone coating across the full strip length. This eliminates individual chip packaging layers entirely.
Core Functional Traits for B2B Specifiers
●Fully dot-free seamless light output, delivering neon-grade uniform illumination without heavy diffuser hardware
●Extra-wide 180° beam angle for smooth wall washing and cove indirect lighting
●Ultra-high die density equivalent to 240–528 individual LEDs per meter
●Superior thermal dissipation via direct die-to-copper contact, cutting thermal resistance dramatically
●Moderate 20–40% upfront cost premium vs SMD, offset by downstream hardware and labor savings

1.3 CSP LED Strip Lights (Chip-Scale Package)

CSP occupies the premium flexible lighting niche, engineered for curved architectural geometry and high-lumen density B2B applications. It uses flip-chip LED components with five-sided phosphor coating, eliminating traditional wire bonding and bulky plastic packaging while retaining discrete chip placement on PCB substrates.
Core Functional Traits for B2B Specifiers
●Ultra-narrow bending radius to accommodate compound curved surfaces like columns and organic ceiling profiles
●Five-sided light emission delivering maximum lumen output per linear meter
●Tight binning control for consistent color rendering across multi-strip runs
●Premium tier pricing, targeted at high-end custom architectural projects

2. Side-by-Side Technical Specification Comparison Table

3. B2B Application Matching Guide by Project Type

For lighting contractors, interior designers and procurement officers, matching LED strip technology to project use cases eliminates costly rework, client dissatisfaction and budget overruns. Below are clear technology recommendations for mainstream commercial lighting verticals:

3.1 Architectural Cove Indirect Lighting

Spec Recommendation: COB LED Strips
Cove lighting relies on reflected light distribution across ceilings and vertical walls. COB’s 180° wide beam and dot-free illumination eliminate uneven scalloping and patchy light gradients, making it the standard specification for high-end hospitality, luxury residential and commercial lobby B2B projects.

3.2 Under-Cabinet Task Lighting (Kitchen &Office Fit-Outs)

●Budget-Focused B2B: High-Density SMD (120 LEDs/m)
●Premium Commercial Fit-Outs: COB LED Strips
SMD delivers acceptable performance paired with standard aluminum channels and frosted diffusers for cost-sensitive retail and office cabinet lighting. COB removes all hotspot reflections on polished stone countertops for luxury hospitality kitchen specifications.

3.3 Curved Architectural Features (Columns, Organic Ceilings, Arches)

Spec Recommendation: CSP LED Strips
CSP’s industry-leading 10–15mm bending radius prevents solder joint failure and phosphor layer delamination common when bending SMD or COB strips around complex curved substrates, a critical advantage for custom boutique retail and museum lighting B2B contracts.

3.4 Retail Display &Showcase Lighting

Spec Recommendation: COB LED Strips
Visible strip installations in retail shelving demand seamless, high-end light presentation. Dot artifacts from SMD strips create an unprofessional aesthetic that devalues merchandise, while COB’s uniform light output delivers gallery-grade presentation for luxury fashion, jewelry and cosmetics retail B2B clients.

3.5 Exterior Facade &Wall Washing Lighting

Spec Recommendation: COB or High-Power CSP LED Strips
COB’s wide 180° beam reduces the total quantity of strips required to cover vertical facades, cutting material and installation labor costs. High-lumen CSP variants deliver stronger light penetration for outdoor locations with high ambient light interference.

3.6 Long-Run High-Voltage Installations (20m Single Power Feed)

Spec Recommendation: AC High-Voltage SMD or COB Strips
Warehouse aisles, parking garage perimeter lighting and large outdoor perimeter runs require high-voltage LED strip variants to mitigate voltage drop issues and reduce driver hardware counts. AC COB strips combine seamless visual quality with long-run installation efficiency for large-scale commercial B2B infrastructure projects.

4. Full Lifecycle Cost-Benefit Analysis for B2B Procurement

Most wholesale buyers only evaluate upfront strip material cost while ignoring total installed cost (TIC) including hardware, labor, maintenance and project rework risk. This table breaks down complete cost variables for accurate B2B budget forecasting:

Key B2B Procurement Takeaway
For visible, client-facing lighting applications where aesthetic consistency is a core deliverable, COB’s moderate upfront material premium is fully offset by savings on aluminum extrusions and elimination of costly post-installation rework. For hidden, purely functional lighting (machinery internal lighting, opaque enclosure backlighting), SMD remains the most economically viable B2B specification.

5. Critical Quality Sourcing Criteria for B2B Wholesale Buyers

When vetting LED strip manufacturers for bulk orders, these verifiable quality benchmarks separate commodity-grade products from commercial-grade certified lighting hardware, supporting stronger E-E-A-T signals for B2B procurement research:

5.1 PCB Substrate Standard

●Copper Weight: Prioritize 2oz or 3oz copper PCB substrates; 1oz copper creates excessive voltage drop and thermal buildup, a critical failure risk for high-power COB strips where PCB acts as primary heat sink
●Board Thickness: 2–3mm rigid PCB for snap-fit extrusion profiles; 1.6mm flexible PCB for curved linear runs

5.2 LED Die Supplier Traceability

Reliable mid-to-high tier die manufacturers: Epistar, San ‘an, Bridgelux
Premium high-CRI die options: Cree, Nichia
Reputable manufacturers provide traceable bin number documentation; suppliers unwilling to disclose die sources carry elevated long-term failure risk for commercial projects.

5.3 Adhesive Backing Specifications

3M VHB tape (300LSE or 9448A series) is the baseline commercial-grade adhesive for indoor and moderate-humidity environments. Budget generic adhesive tapes degrade within months in warm, humid commercial spaces; request official 3M datasheet validation for long-term installation warranty compliance.

5.4 Color Consistency (SDCM Binning)

For multi-strip linear runs aligned end-to-end, specify ≤3 SDCM color matching binning. Human eyes easily detect visible color shifts above 5 SDCM, creating costly client rework on hospitality and retail B2B projects.

5.5 Global Compliance Certifications (Mandatory for Cross-Border B2B)

●North American Commercial Projects: UL / ETL certification
●EU Market Distribution: CE, RoHS, REACH compliance (REACH critical for Scandinavian tender projects)
●Performance Validation: Third-party LM-80 lumen maintenance test reports to substantiate lifespan claims

6. Manufacturing Quality Control Standards (B2B Factory Transparency)

As a vertical integrated LED strip manufacturer with dedicated R&D and parallel production lines for all three technologies, Mingxue Lighting maintains strict inline quality protocols to reduce bulk order defect rates for B2B wholesale clients:
1.SMD Production QC: ±0.05mm component placement accuracy with 100% automated optical inspection (AOI) to eliminate solder joint defects
2.COB Production QC: Precision volumetric phosphor dispensing with inline spectrophotometer verification to eliminate uneven brightness banding
3.CSP Production QC: Pre-placement laser PCB flatness mapping to accommodate ultra-small flip-chip contact surfaces and prevent cold solder defects

7. B2B Decision Matrix: Select LED Strip Technology Based on Core Project Priorities

8. Frequently Asked Questions

Q1: Can SMD, COB and CSP LED strips all support dimming control for commercial projects?
A: All three technologies fully support PWM and analog dimming when paired with matching DC LED drivers or smart lighting controllers. Premium COB strips deliver an extended dimming range down to 0.1% brightness, making them ideal for dim-to-warm architectural hospitality lighting B2B specifications.
Q2: Which LED strip variant performs best in outdoor wet-location installations?
A: All three product lines can be manufactured to IP65, IP67 or IP68 waterproof ratings. COB’s single continuous silicone encapsulation layer delivers inherent superior moisture resistance compared to per-chip coated SMD strips. CSP flip-chip designs also offer robust waterproof performance with fully sealed PCB substrates.
Q3: Do COB LED strips operate hotter than standard SMD strips at equivalent wattage?
A: COB LEDs run cooler at the semiconductor die level due to drastically reduced thermal resistance between bare dies and copper PCB traces. The PCB surface may register a higher surface temperature as heat is evenly distributed across the substrate, which is a deliberate thermal design advantage rather than a performance flaw.
Q4: What minimum order quantities (MOQs) apply for custom B2B LED strip specifications?
A: At Mingxue Lighting, flexible bulk MOQs support B2B wholesale and custom project clients:
Standard CCT, CRI or power adjustments: 500–1,000 linear meters
Fully custom PCB layouts, specialized phosphor formulations or bespoke waterproof grades: 3,000–5,000 linear meters
Engineering sample requests are available for pre-tender project validation prior to bulk order commitments.

9. Conclusion – Strategic Technology Selection for 2026 B2B Lighting Projects

There is no universal “best” LED strip technology for every commercial lighting tender. Successful B2B specification relies on aligning core product performance attributes with project aesthetic requirements, budget constraints and long-term maintenance targets:
1.SMD LED strips remain the cost-effective workhorse for concealed, non-visible functional lighting across industrial, warehouse and low-budget commercial fit-outs
2.COB LED strips are the default premium specification for client-facing architectural lighting where seamless dot-free illumination is a mandatory deliverable
3.CSP LED strips fill a specialized niche for custom curved architecture and ultra-high-lumen density retail and facade lighting projects
For global B2B lighting stakeholders in 2026, partnering with a vertically integrated manufacturer that produces SMD, COB and CSP strips in-house enables neutral, project-aligned specification recommendations rather than limited single-technology sales bias. Lighting contractors, distributors and design firms can reduce project risk and optimize total project cost by sourcing all three LED strip variants from a single certified production partner.

Request free engineering sample kits, download full photometric datasheets or connect with our dedicated B2B technical sales team to receive customized quotations for your commercial lighting tender projects.
